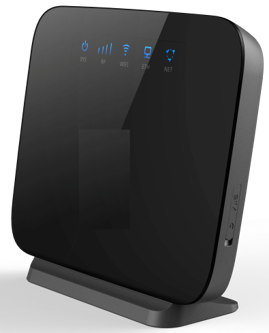

RLT-30P LTE PORTABLE CPE

share
WeChat
copy Link
Facebook
X
LinkedIn
RLT-30P is a 4G LTE portable CPE,with 3000mAh battery,It supported 4G MIMO 2*2, LTE CAT4 speed : 150Mbps DL, 50Mb ,WIFI 2.4G,1*WAN/LAN, 10BaseT/100Base automatic adaptive port,TR069&FOTA supported.
Place of Origin CHINA
Brand Name REYLINK
Model Number RLT-30P
Minimum Order 500 Piece
Packaging Details Standard Export Carton, Foam and Protective Film
Delivery Time 25 work days
Payment Terms T/T, Western Union, Paypal
Contact Whatsapp
Get Best Price
Product profileDownload

Product introduction

RLT-30P is a 4G LTE portable CPE,with 3000mAh battery,It supported 4G MIMO 2*2, LTE CAT4 speed : 150Mbps DL, 50Mb ,WIFI 2.4G,1*WAN/LAN, 10BaseT/100Base automatic adaptive port,TR069&FOTA supported.


Specifications


OSLinux
Support Bandscustomize according to the client
Size108*59*15 mm

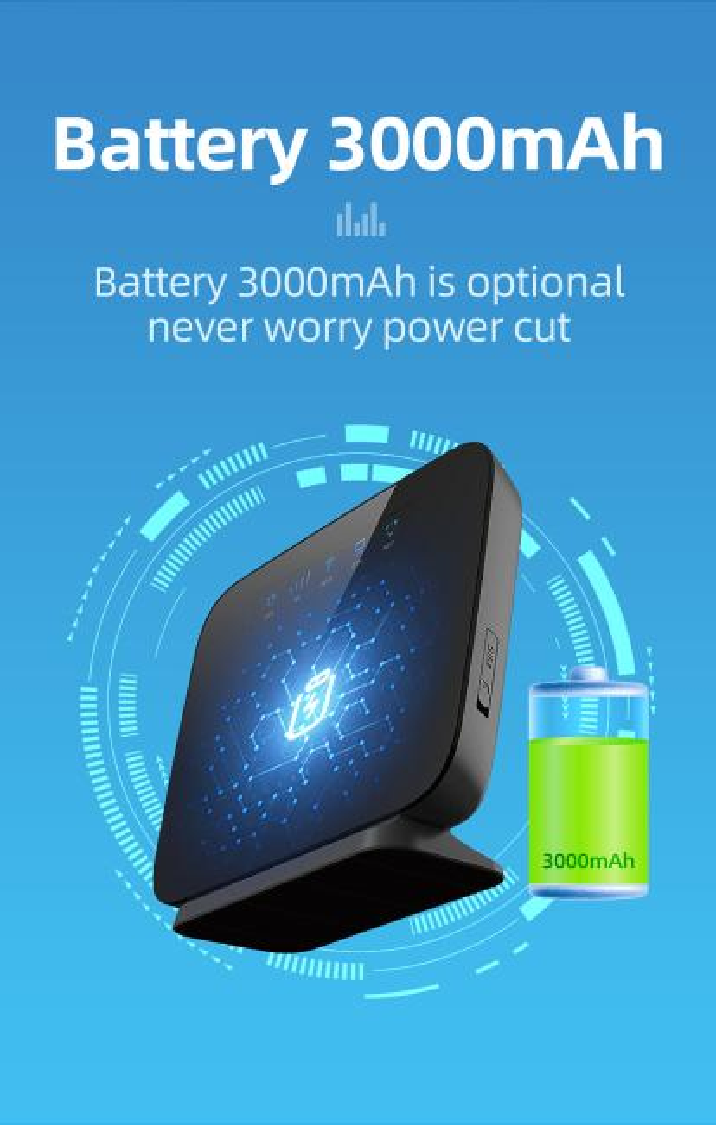

Battery3000mAh(Optional)
LTE CAT4150Mbps DL, 50Mbps UL
LEDWi-Fi, 4G Signal, Power,Ethernet,Connection
Chip Platform   Chipset: ZX297520V3 ( 4G chipset)
Realtek8192ES (WiFi chipset)
terAptiv@900MHz
Wi-Fi2.4GHz, 802.11b/g/n,Up to 32 connected uers
Memory   Nand 128MBytes+DDR 128MBytes
AntennaInternal 4G/3G/2G Main antenna, WIFI Antenna MIMO 2*2
SIM CardStandard SIM card (2FF)
Port

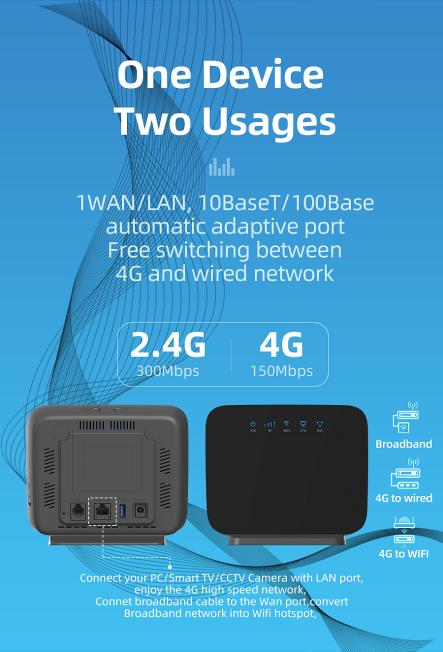

1WAN/LAN, 10BaseT/100Base automatic adaptive port

1 RJ11(optional)

ProtocolSupport TR06/FOTA
