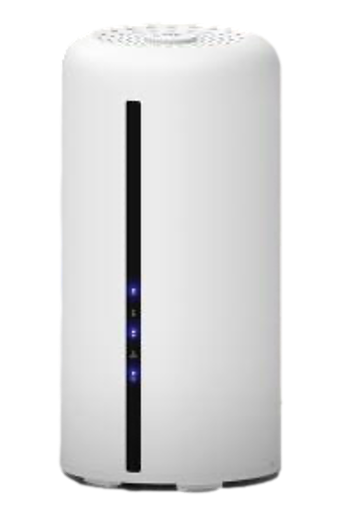

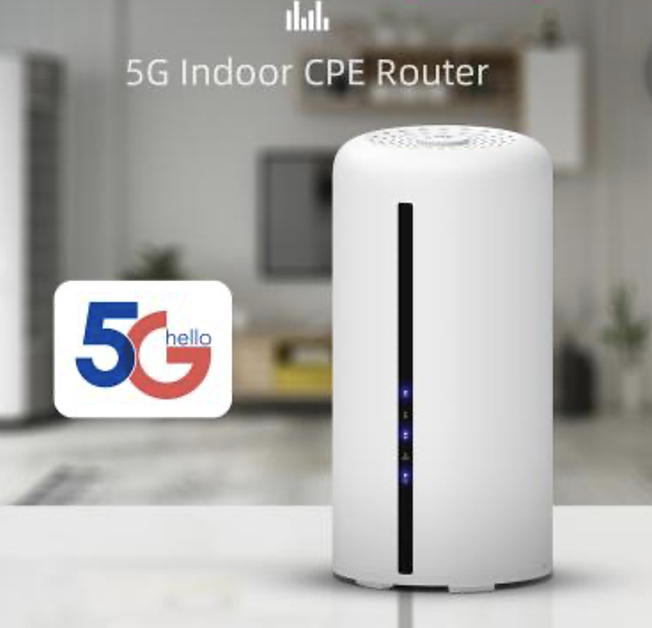

RLT-510C 5G LTE INDOOR CPE

share
WeChat
copy Link
Facebook
X
LinkedIn
5G/LTE indoor CPE ,Dual-core ARMCortex A55 CPU,CPU frequence is up to 1.35GHz, 5G RAM 4Gb LPDDR4X + ROM 2GbNand,Speed 5G: 2Gbps DL/ 1Gbps UL, LTE: 300Mbps DL/150Mbps UL,5G: DL MIMO 4*4, UL MIMO 2*2 ,LTE: MIMO 2*2, WIFI: MIMO 2*2(2.4GHz 5GHz),LTE: 64-QAM 5G Sub6: 256-QAM,Multi bands and ports supported.
Place of Origin CHINA
Brand Name REYLINK
Model Number RLT-510C
Minimum Order 500 Piece
Packaging Details Standard Export Carton, Foam and Protective Film
Delivery Time 5~7 work days
Payment Terms T/T, Western Union, Paypal
Contact Whatsapp
Get Best Price
Product profileDownload

Product introduction

5G/LTE indoor CPE ,Dual-core ARMCortex A55 CPU,CPU frequence is up to 1.35GHz, 5G RAM 4Gb LPDDR4X + ROM 2GbNand,Speed 5G: 2Gbps DL/ 1Gbps UL, LTE: 300Mbps DL/150Mbps UL,5G: DL MIMO 4*4, UL MIMO 2*2 ,LTE: MIMO 2*2, WIFI: MIMO 2*2(2.4GHz 5GHz),LTE: 64-

QAM      5G Sub6: 256-QAM,Multi bands and ports supported.


Specifications


OSLinux 4.4
Wi-Fi2.4GHz 5GHz   802.11a/b/g/n/ac
Chip Platform

5G/LTE Modem: Unisoc IVY510, Dual-core ARM Cortex A55, up to 1.35GHz

WIFI: Realtek RTL8198D,   Dual-core MIPS interAptiv@900MHz

Support Bands

5G-NR: N1/N41/N77/N78/N79

FDD-LTE: B1/B3/B5/B8(or B28A/B28B)

TDD-LTE: B34/B38/B39/B40/B41

EthernetRJ45: 2 x Gigabit Port (1 LAN + 1WAN)
LED5 LEDs with 3 colors, Wi-Fi, 4G Signal, 5G Signal, WPS, Power
Memory   5G/LTE Modem: RAM 4Gb LPDDR4X + ROM   2Gb Nand RTL8198D:   RAM 2Gb DDR3 + ROM 1Gb Nand
Power SupplyDC 12V/2A
Carrier AggregationDL: 3CA   UL: 2CA
MIMO5G: DL MIMO 4*4, UL MIMO 2*2 LTE: MIMO 2*2, WIFI: MIMO 2*2(2.4GHz 5GHz)
DL/UL   modulationLTE: 64-QAM      5G Sub6: 256-QAM
Peak data rate5G: 2Gbps DL/ 1Gbps UL, LTE: 300Mbps DL/ 150Mbps UL
