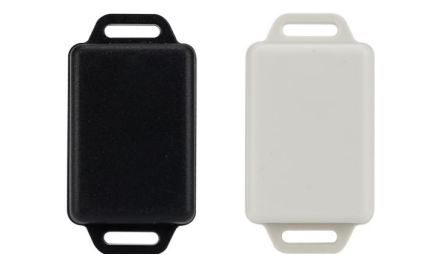

RLT-2415T 2.45GHZ ACTIVE RFID TAG

share
WeChat
copy Link
Facebook
X
LinkedIn
This 2.4GHz Light Tag RLT-2415T, adopts ultra-low power consumption design, and has a longer service life; it has the feature of frequency hopping mode, strong anti-collision and anti-interference capabilities.It can be widely used in integrated application scenarios such as enterprise fixed asset management, parking lot management, fire protection management, and warehouse management.
Place of Origin CHINA
Brand Name REYLINK
Model Number RLT-2415T
Minimum Order 5 Piece
Packaging Details Standard Export Carton, Foam and Protective Film
Delivery Time 5~7 work days
Payment Terms T/T, Western Union, Paypal
Contact Whatsapp
Get Best Price
Product profileDownload

Product introduction

This 2.4GHz Light Tag RLT-2415T, adopts ultra-low power consumption design, and has a longer service life;   it has the feature of   frequency hopping mode, strong anti-collision and anti-interference capabilities.It can be widely used in integrated application scenarios such as enterprise fixed asset management, parking lot management, fire protection management, and warehouse management.



Product Features

lUltra-low power consumption design, longer service life

lEffective recognition distance is more than 200 meters

lFrequency hopping operating mode, stronger anti-collision and anti-interference capabilities

l125KHz trigger distance 1~5 meters (adjustable)

lCompact and lightweight, easy to install


Specifications

General parameters

Product Dimensions

67*36*16mm

Weight

Net 25g

Operating Temperature

-20+60

Storage Temperature

-40+80

Humidity

5%~95(non-condensing)

Battery parameters

CR2450

Battery Life

1-3Years (Replaceable)

Performance Indexes

Operating Frequency

2.4GHz2.4835GHz,125KHz

Current

<1μA/Static,<20mA(Transmission)

Signal Speed

1Mbit/s

Transmission Power

0-7dBm

IP Rate

IP54



UHF RFID Handheld Reader specification -V1.0                             undefined

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
