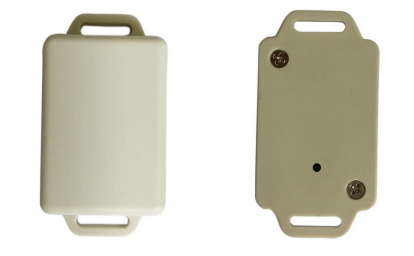

RLT-2406T 2.45GHZ ACTIVE RFID TAG
On the assets management, it has an anti-disassembly function to avoid the Tag being maliciously removed; with frequency hopping mode of operation, strong anti-collision and anti-interference capabilities.It can be widely used in enterprise fixed asset management scenarios.
Product introduction
This 2.4GHz anti-disassembly Tag RLT-2406T, adopts ultra-low power consumption design, and has a longer service life; it can be installed in the enterprise by screw fixing.On the assets management, it has an anti-disassembly function to avoid the Tag being maliciously removed; with frequency hopping mode of operation, strong anti-collision and anti-interference capabilities.It can be widely used in enterprise fixed asset management scenarios.
Product Features
lUltra-low power consumption design, longer service life
lEffective recognition distance is more than 200 meters
lFrequency hopping operating mode, stronger anti-collision and anti-interference capabilities
lAnti-demolition alarm；
lCompact and lightweight, easy to install
Specifications
General parameters | |
Product Dimensions | 67*36*16mm |
Weight | Net 25g |
Operating Temperature | -20℃～+60℃ |
Storage Temperature | -40℃～+80℃ |
Humidity | 5％～95％(non-condensing) |
Battery parameters | CR2450 |
Battery Life | 1-3Years (Replaceable) |
Performance Indexes | |
Operating Frequency | 2.4GHz～2.4835GHz |
Current | <1μA/Static,<20mA(Transmission) |
Signal Speed | 1Mbit/s |
Transmission Power | 0-7dBm |
IP Rate | IP54 |
