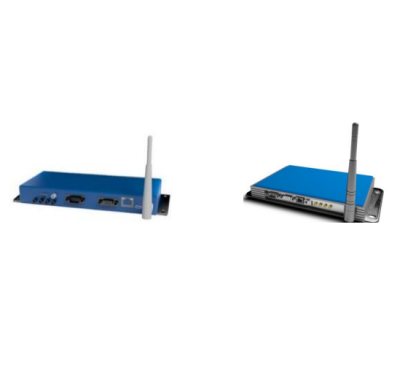

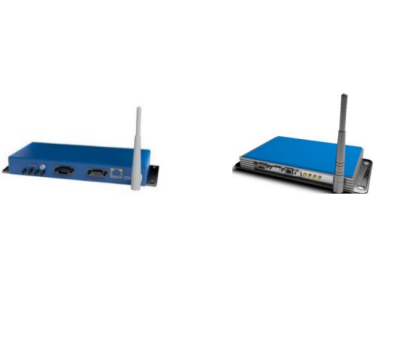

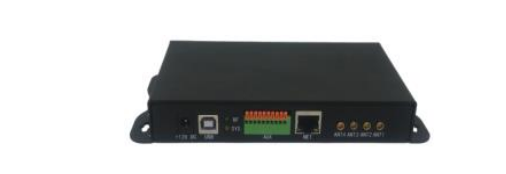

RLT-902X FIXED PASSIVE UHF RFID READER
Can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical system, cold chain management,temperature& power monitoring, anti-counterfeiting system and production process control.
Product introduction
This UHF reader RLT-902X series, internally designed with a low-power, cost-effective reader module scheme, with a long reading distance and recognition.It has the characteristics of fast speed, Rich interfaces, and easy installation features.
Can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical system, cold chain management,temperature& power monitoring, anti-counterfeiting system and production process control.
Product Features
lBased on low-power, cost-effective reader module design
lWorking frequency: 840-868MHz/902-928MHz (can be adjusted according to the requirements of different countries or regions)
lSupport electronic tags that comply with EPC Global UHF Class 1 Gen2/ISO 18000-6C standard
lSupport reading various sensor electronic tags such as temperature electronic tags and water dew electronic tags
lOptimized multi-label inventory algorithm, the inventory label speed is greater than 100 sheets/second
lWorks in broad-spectrum frequency hopping (FHSS) or fixed-frequency transmission mode
lRF output power up to 30dBm (1dBm step adjustable)
lSupport independent and combined inventory of EPC, TID, and USER data areas
lSupport USB, RS232, RS485, Weigand, RJ45 (TCP/IP, UDP) and WIFI, 4G, BT Bluetooth and other optional wireless interfaces
lProvide demo software and SDK development kit
Specifications
General parameters | |
Product Dimensions | Customized by model |
Weight | Customized by model |
Operating Temperature | -20℃～+60℃ |
Storage Temperature | -40℃～+80℃ |
Humidity | 5％～95％(non-condensing) |
Power supply | DC12V |
Performance Indexes | |
Operating Frequency | 840-960MHz optional, frequency hopping function |
Operation mode | Active/passive operating mode |
Sensitivity | -93dBm±1.0dB （Adjustable） |
Reading distance | Depend on the external Antenna |
Output Power | 30dBm±1dBm(MAX) |
Antenna Port | 1 or 4 MCX/SMA interfaces |
Protocol | ISO 18000-6C |
Current | <600mA/DC12V（Max） <100mA/DC12V （Typical） |
IP rating | IP56 |
External interfaces | |
Communication Interfaces | RS232/ RS485 ,10/100M Ethernet ，WG26、WG34 |
Optional Interfaces | 4G,WIFI,relays input& output |
General parameters | |
Product Dimensions | Customized by model |
Weight | Customized by model |
Operating Temperature | -20℃～+60℃ |
Storage Temperature | -40℃～+80℃ |
Humidity | 5％～95％(non-condensing) |
Power supply | DC12V |
Performance Indexes | |
Operating Frequency | 840-960MHz optional, frequency hopping function |
Operation mode | Active/passive operating mode |
Sensitivity | -93dBm±1.0dB （Adjustable） |
Reading distance | 7-25m |
Output Power | 30dBm±1dBm(MAX) |
Output Power step | 1dBm |
Antenna Gain | 5.5/8/9/12dBi |
Protocol | ISO 18000-6C |
Current | <600mA/DC12V（Max） <100mA/DC12V （Typical） |
IP rating | IP56 |
External interfaces | |
Communication Interfaces | RS232/ RS485 ,10/100M Ethernet ，WG26、WG34 |
Optional Interfaces | 4G,WIFI,relays input& output |
