Product introduction

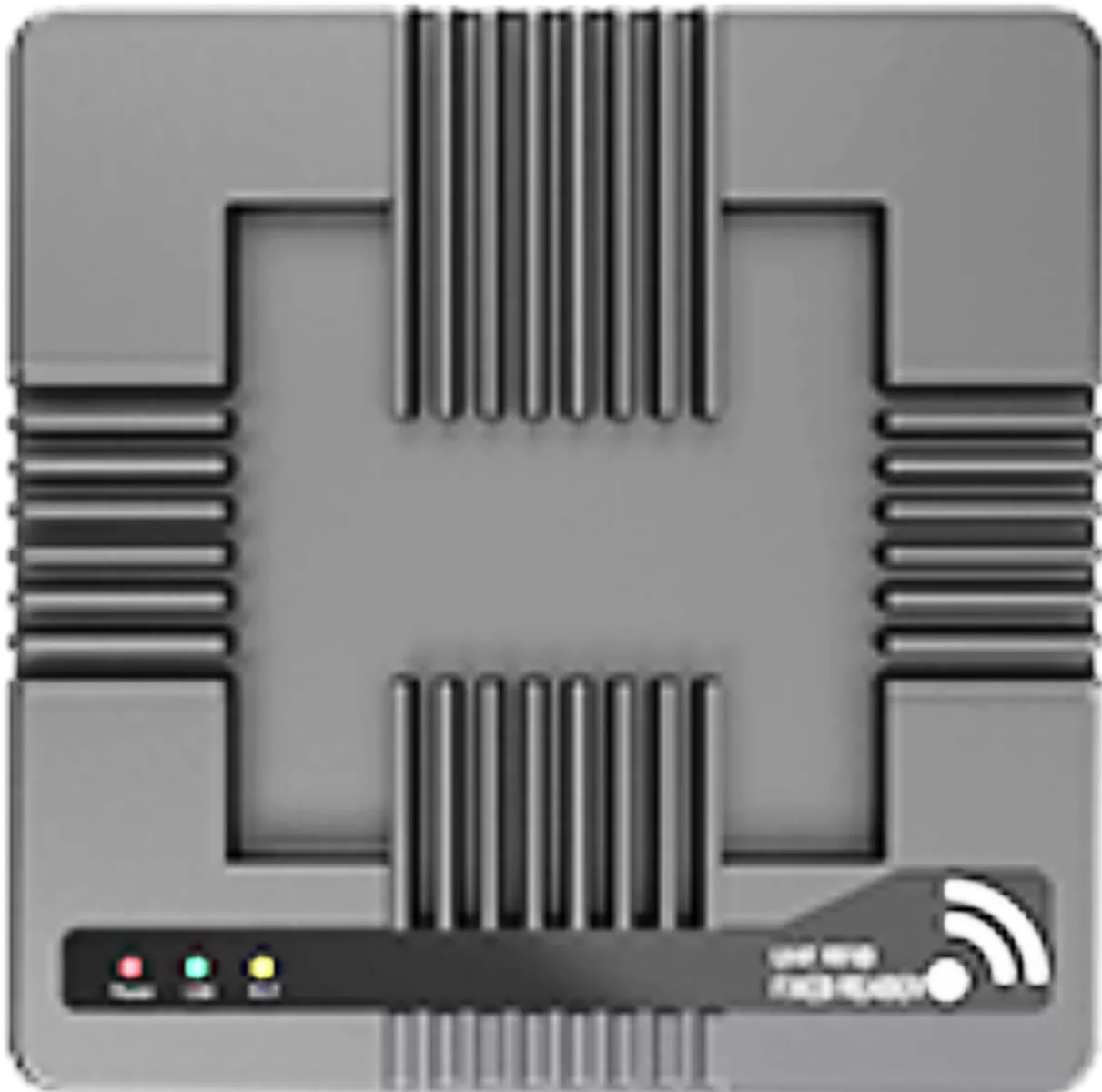

This 2.4GHz directional wall mounted reader RLT2401D, operating at 2.45GHz (ISM band), uses a high-end RF SOC chip that incorporates advanced anti-collision algorithms and strong anti-interference features, it can perform automatic identification, tracking, regional positioning, collection and other functions without manual participation;The 2.4GHz directional reader RLT2401D is very suitable RFID reader for outdoor applications and can be widely used in logistics tracking, commodity inventory, goods sorting, vehicle management, personnel management, asset management, medical system, cold chain management, power monitoring and production process control, etc.
Product Features
lFar recognition distance , effective visual recognition distance up to 200 meters.
l Strong multi-tag recognition capacity, up to 200 sheets / second.
l Up to 2000 tags data cache capacity, data will not be lost when the power is off.
lRich wired data interface, support 10M/100M adaptive network port, RS232, RS485, Weigand; (standard).
l Wireless data interface, supports 4G, WIFI data transmission; (optional).
lWide power supply range:9V-18V
lSupport online and offline working modes such as command, auto, trigger reading. * Compact and elegant appearance, easy to install.
lDemo software and SDK development kit supported.
lSupport serial port and RJ45 update.
Specifications
General parameters | |
Product Dimensions | 220*220*75mm |
Package Dimensions | 240*240*90mm |
Weight | Net 2.5Kg,Gross weight3.0kg(with package) |
Operating Temperature | -25℃～+60℃ |
Storage Temperature | -40℃～+80℃ |
Humidity | 5％～95％(non-condensing) |
Power supply | AC100V-240V~0.6A,50-60HZ |
Performance Indexes | |
Operating Frequency | 2.4GHz～2.4835GHz |
Operation mode | Active/passive operating mode |
Sensitivity | -93dBm±1.0dB （Adjustable） |
Input Power(Max) | 100W |
Reading distance | 0-150m |
IP rating | IP67 |
Antenna Gain | 15dBi |
VSWR | <1.4 |
Horizontal Beam-wide | 40° |
Vertical Beam-wide | 35° |
Input impedance | 50Ω |
External interfaces | |
Communication Interfaces | RS232/ RS485 ,10/100M Ethernet ，WG26、WG34，relays input& output |
Optional Interfaces | 4G,WIFI |
